Suction Sandblasting Cabinet
FEATURES
- Standard models: TS9060/1010/1212/1515A
- Standard nozzle: Φ8mm boron carbide
- Working pressure: 0.8–1.2m³/min at 6bar
- Lead time: 7–15 days for standard models
- Warranty: 1 year for main machine
Product Overview & Key Features
Our suction sandblasting cabinet (also called siphon blast cabinet) adopts a negative-pressure injector blasting principle for manual dry surface treatment. It is an economical and reliable solution for small and medium-sized metal workpieces, widely used for rust removal, oxide scale cleaning, casting deburring and machining mark elimination, delivering a uniform matte surface finish.
Compared with high-pressure blasting systems, it features lower procurement cost, simple operation and moderate abrasive consumption, making it ideal for small and medium batch production. Optional turntable and tumble barrel accessories are available to match different production needs.
Advantage
- High-efficiency cyclone separation: Maximizes abrasive recycling rate and reduces daily consumable costs
- Fully sealed negative pressure design: Prevents dust leakage and meets workshop environmental requirements
- Boron carbide nozzle standard: 5–10 times longer service life than ordinary tungsten steel nozzles
- Thick wear-resistant rubber lining: Protects the cabinet body and extends overall service life
- Clear observation window: Ensures good operation visibility and consistent processing quality
- Compact floor-standing structure: No foundation installation required, suitable for small workshop spaces
Environmental and Safety Features
- Dust-Free Operation: Advanced filtration system ensures no dust escapes, protecting the operator and environment.
- Energy Efficient: Low power consumption with high-performance fans.
- Safety Gloves: Thick rubber gloves protect operators from abrasives and dust.
- Compliance: Meets international safety and environmental standards.
Technical Specifications & Available Models
Our suction blasting cabinet can be designed according to customers' special workpiece requirements, different chamber size, rotary table and multiple blasting guns optional.

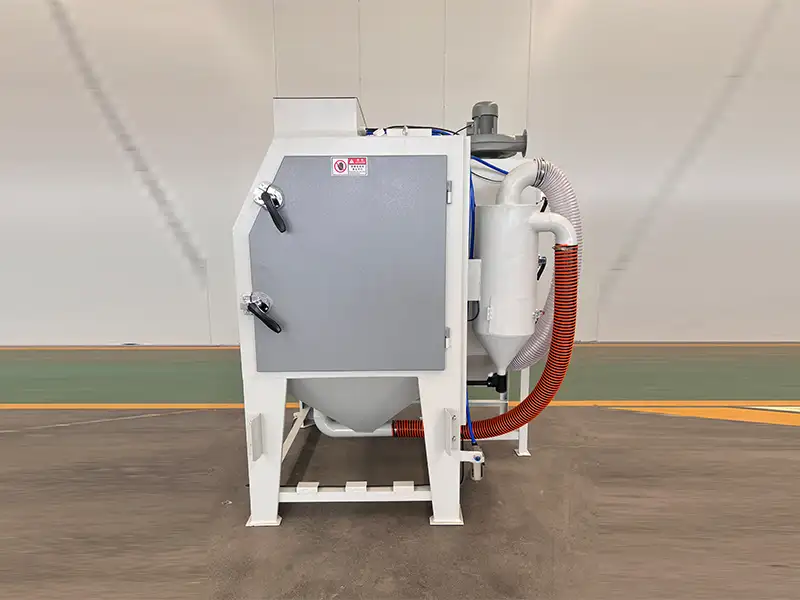

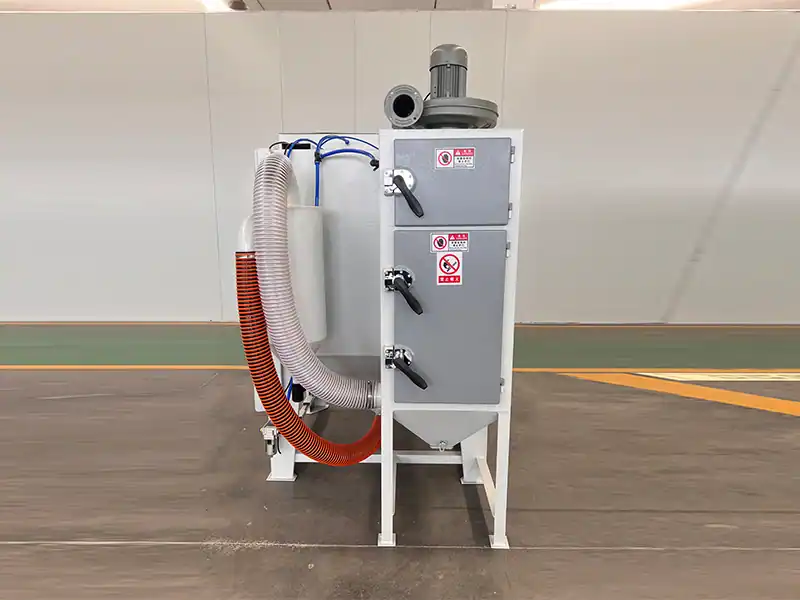

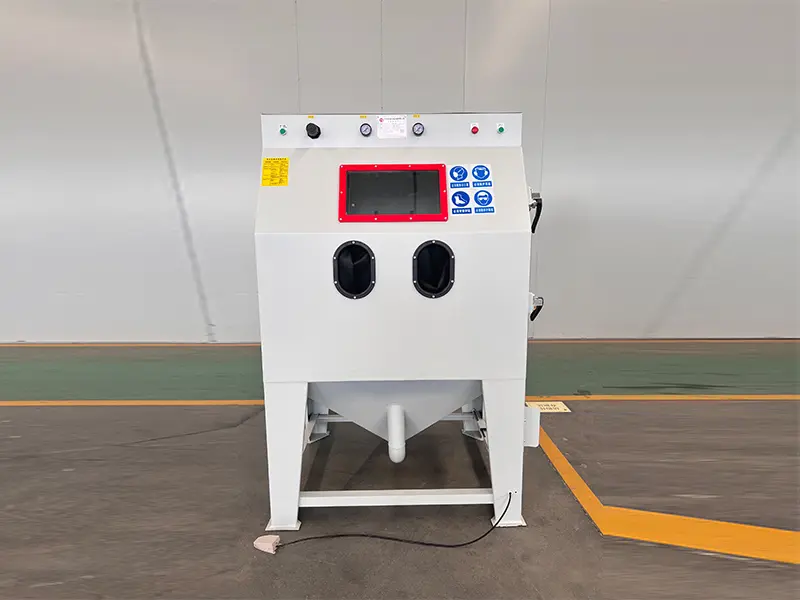

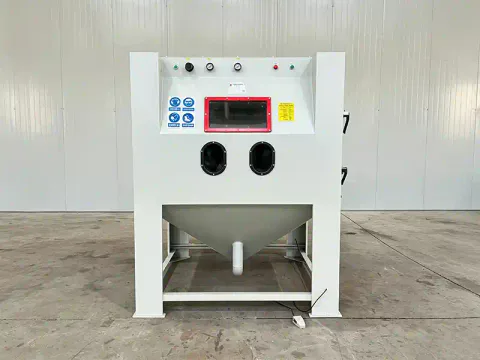

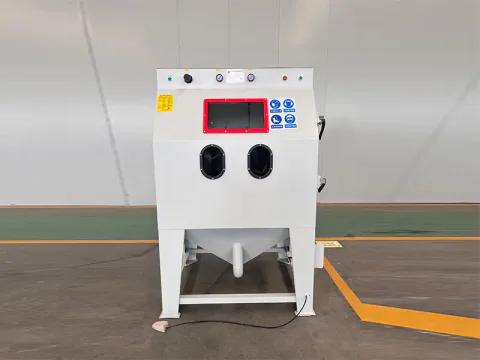

TS9060A
TS1010A

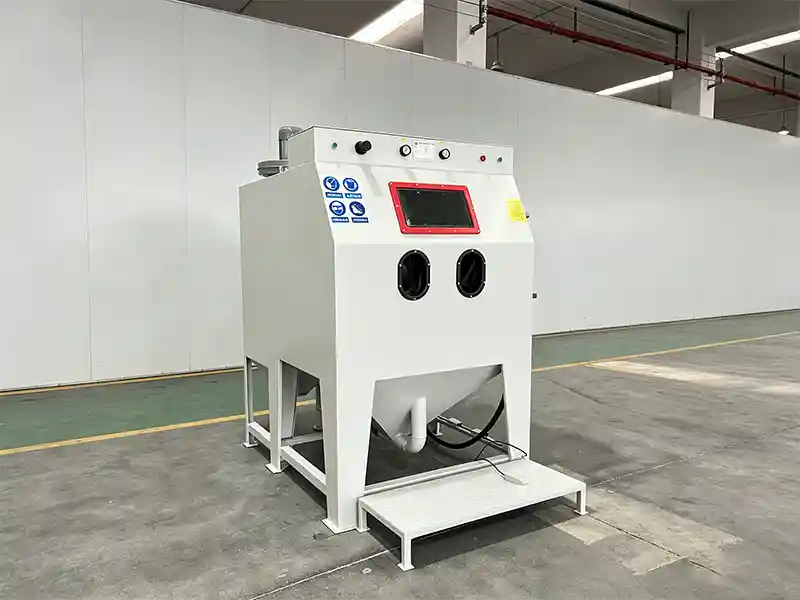

TS1212A
Overall Size
900x1000x1825mm
1000x1500x2025mm
2400x1700x2225mm
Internal Size
900x600x600mm
1000x1000x700mm
1200x1200x800mm
Entrance Door
460x390mm
800x650mm
1000x750mm
Total Weight
~250kg
~400kg
~600kg
Power
Fan 550W + Light 12W
Fan 550W + Light 12W
Fan 750W + Light 12W
Load Capacity
<60kg (evenly distributed)
<60kg (evenly distributed)
<60kg (evenly distributed)
Nozzle
1 pc, Φ8mm
1 pc, Φ8mm
1 pc, Φ8mm
Compressed Air
0.8~1.2m³/min at 6bar
0.8~1.2m³/min at 6bar
0.8~1.2m³/min at 6bar
Abrasive Feed
5~10kg (24-320 mesh)
5~10kg (24-320 mesh)
5~10kg (24-320 mesh)
Filter Type
Bag Filter
Bag Filter
Bag Filter
Electrical Supply
220V/50Hz, Single Phase
220V/50Hz, Single Phase
220V/50Hz, Single Phase
Connection Hose
DN12mm
DN12mm
DN12mm
Optional Custom Configurations
Rotary Table
For precise workpiece positioning and 360° uniform blasting
Additional Blast Guns
Boost processing efficiency for high-volume production needs
Tumble Barrel
For batch mass processing of small and uniform metal parts
Cartridge Dust Collector Upgrade
Higher filtration rate for stricter environmental compliance
Custom Chamber Size
Tailored internal dimensions for special workpiece specifications
Voltage & Frequency Customization
Adapted to local power standards for different countries and regions
Applications & Typical Workpieces
Our dry manual suction blasting cabinet is widely used by mold, hardware, 3C electronics, auto component and hydraulic valve factories for daily surface treatment.
Mold Maintenance & Surface Pretreatment
Perfect for routine maintenance of injection molds, die casting molds and silicone rubber molds. It safely cleans mold inserts and ejector pins while delivering uniform mold texture pretreatment without damaging cavity precision.
Learn more →Hardware Fasteners & Small Parts Deburring
Ideal for deburring and finishing screws, nuts, flat washers, micro gears and stainless steel fasteners. A matching tumble barrel option is available for mass processing of small metal parts and terminals.
Learn more →3C Precision Aluminum Components Finishing
Widely used for precision finishing of phone aluminum midframes, camera decorative rings, shielding cans and heat sink fins. Creates consistent matte finish on thin aluminum parts for consumer electronics.
Learn more →Automotive & Motorcycle Parts Treatment
Suitable for rust removal and refurbishment of brake caliper pistons, valve lifters, motorcycle footrest parts and small engine castings. Provides ideal surface preparation for subsequent painting and anti-corrosion treatment.
Learn more →Hydraulic Valve & Pump Components Cleaning

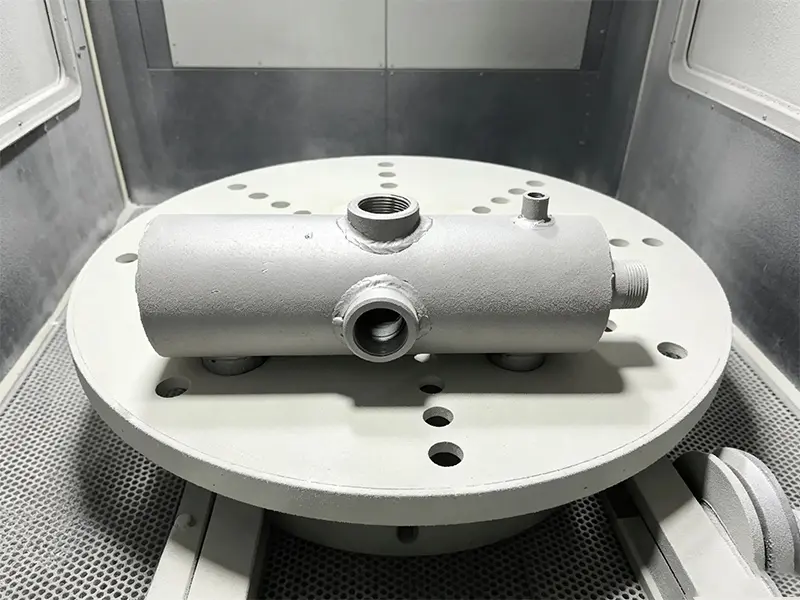

Effectively removes casting sand and burrs from ball valve cores, valve stems, pump impellers and hydraulic fittings. Achieves all-round cleaning without secondary tool marks on precision valve components.
Learn more →Medical, Jewelry & Craft Hardware
Supports delicate surface treatment for dental implant parts, orthodontic brackets, gold silver jewelry and eyeglass metal parts. Creates uniform matte texture for medical accessories and craft hardware.
Learn more →

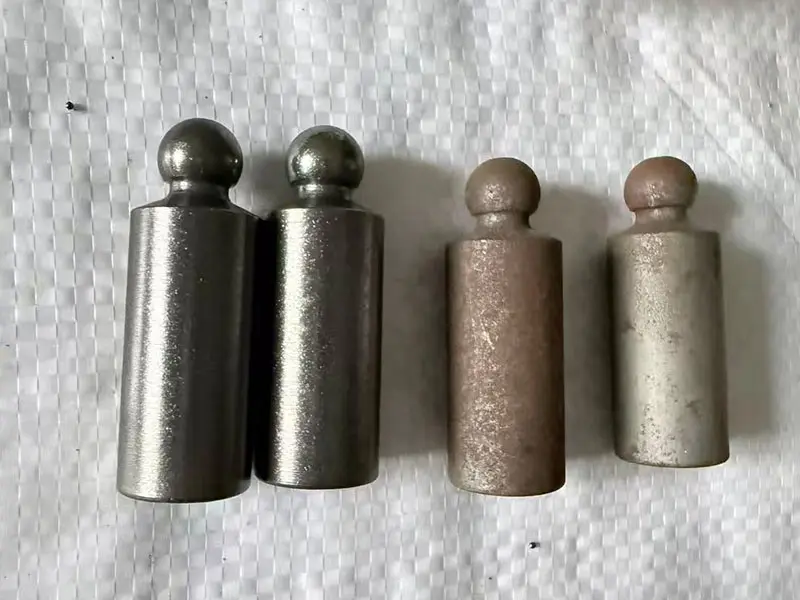

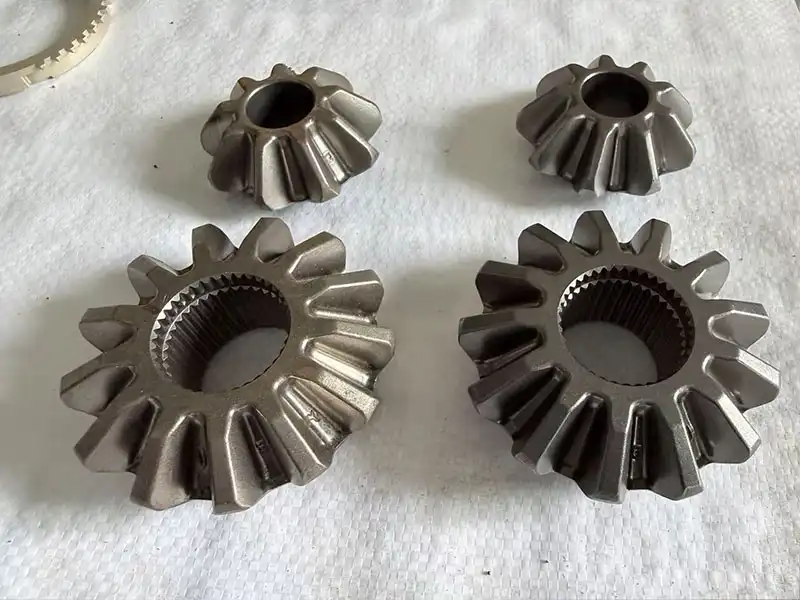

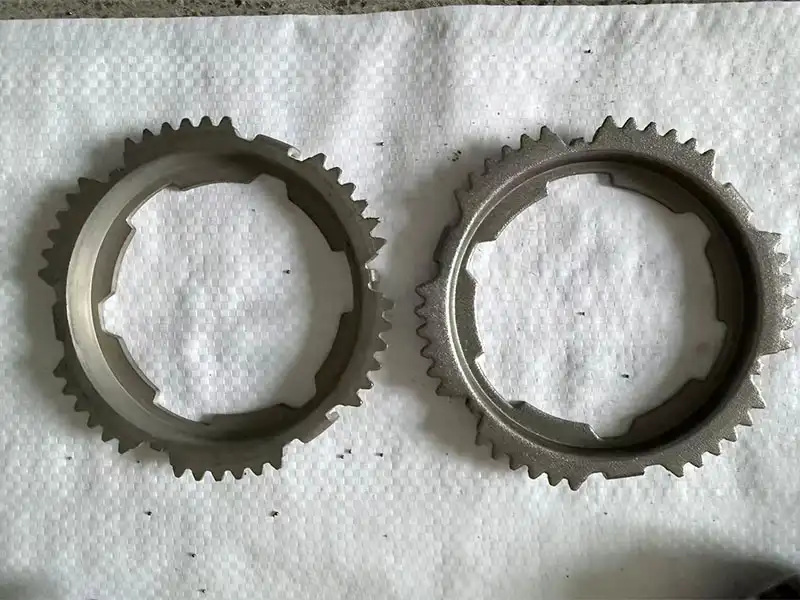

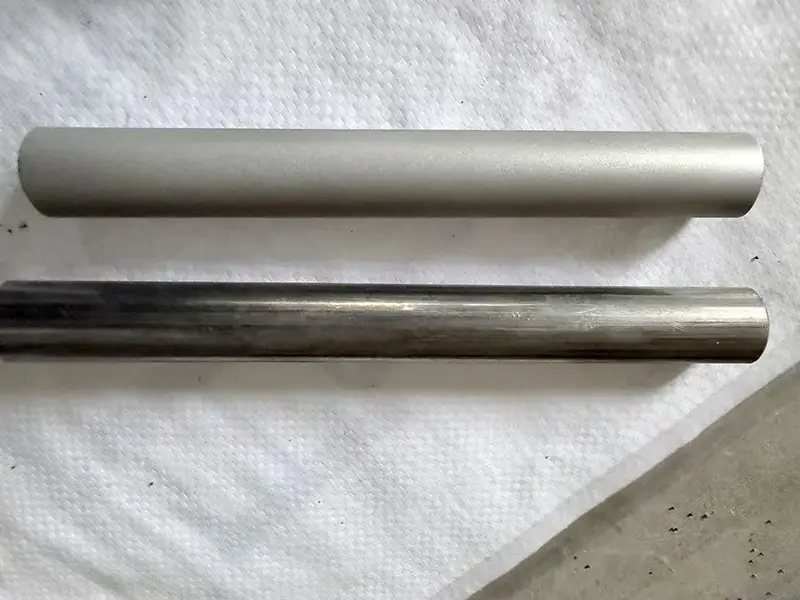

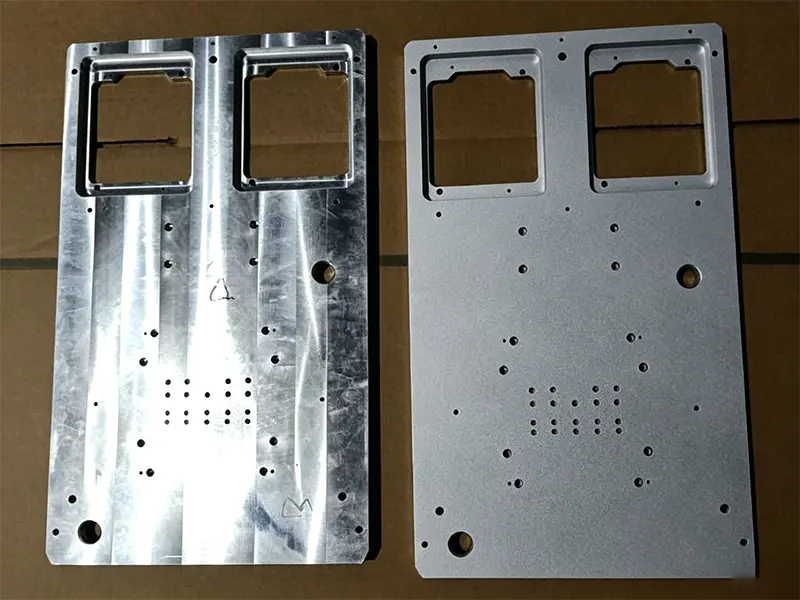

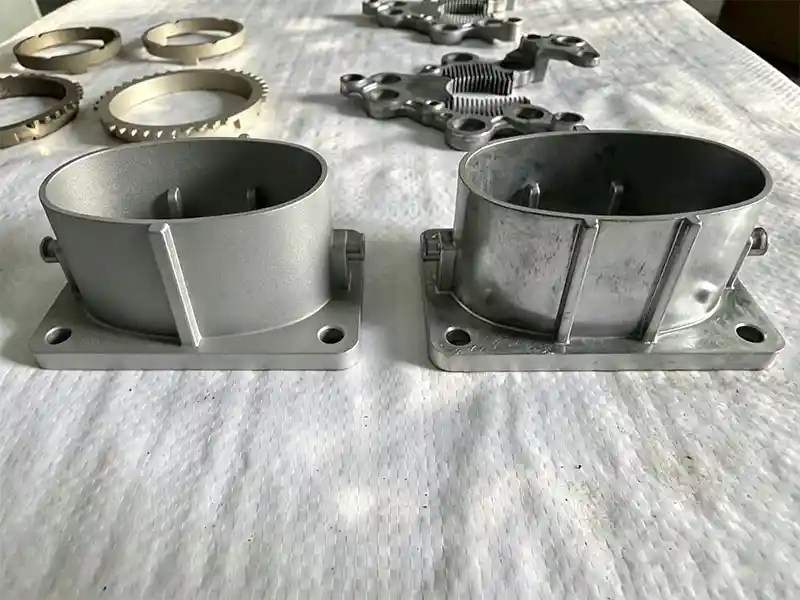

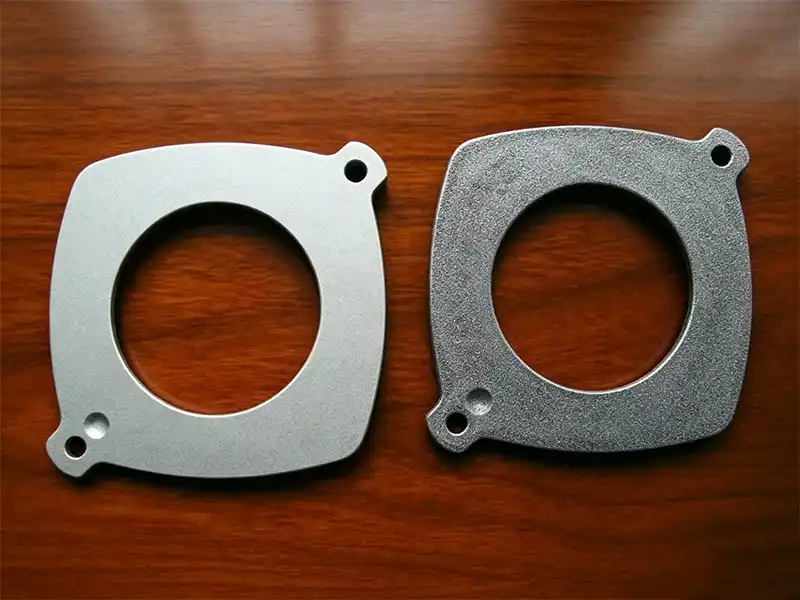

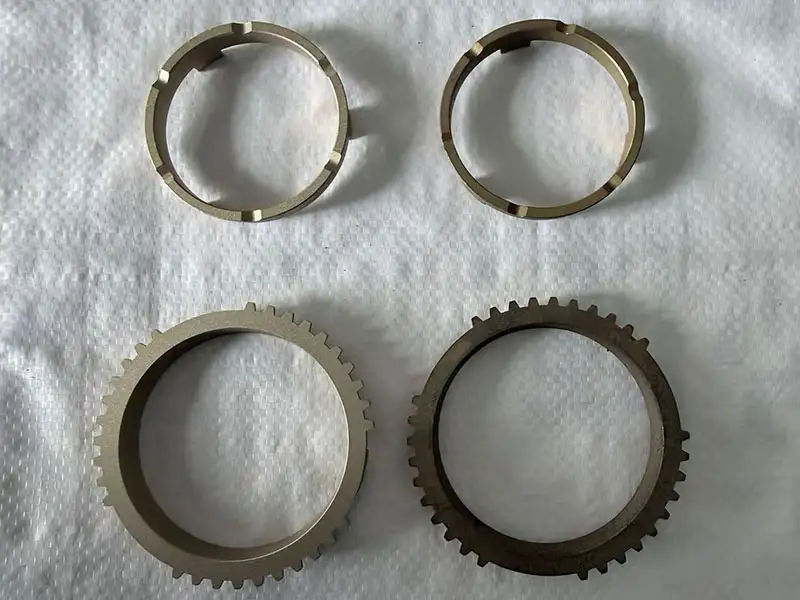

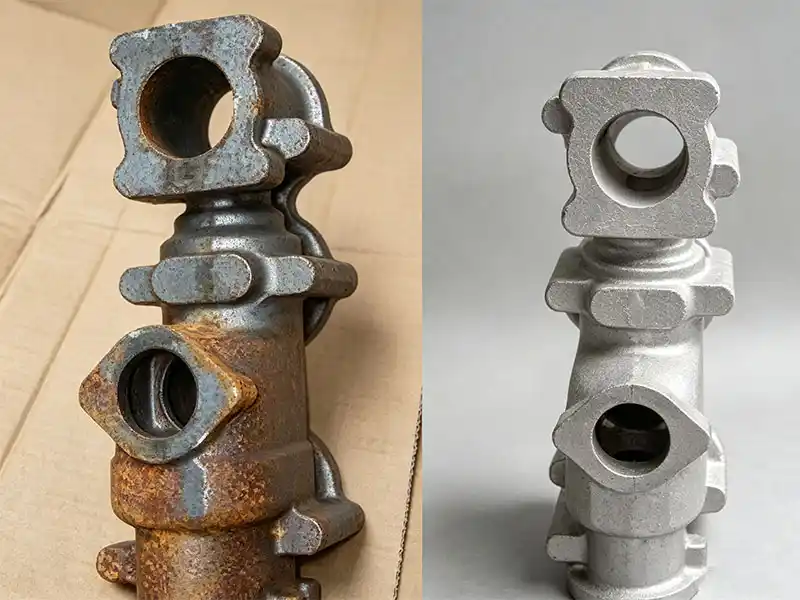

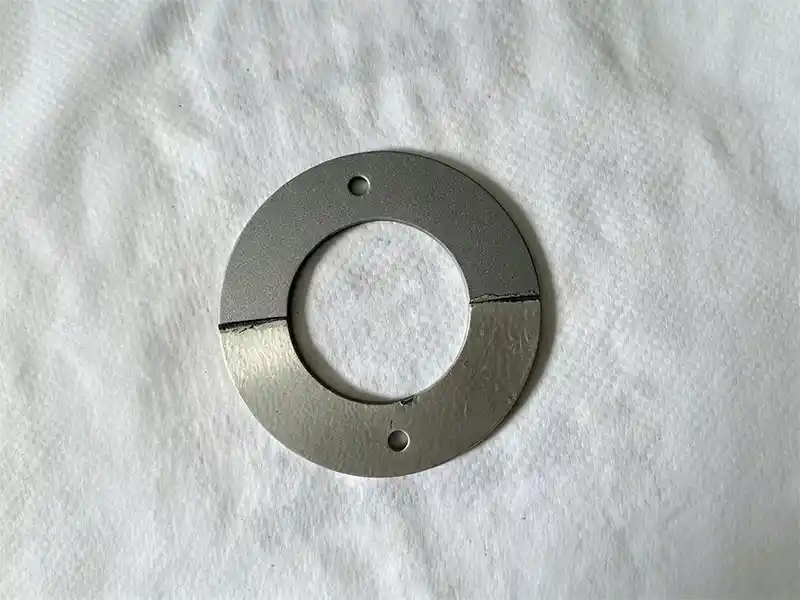

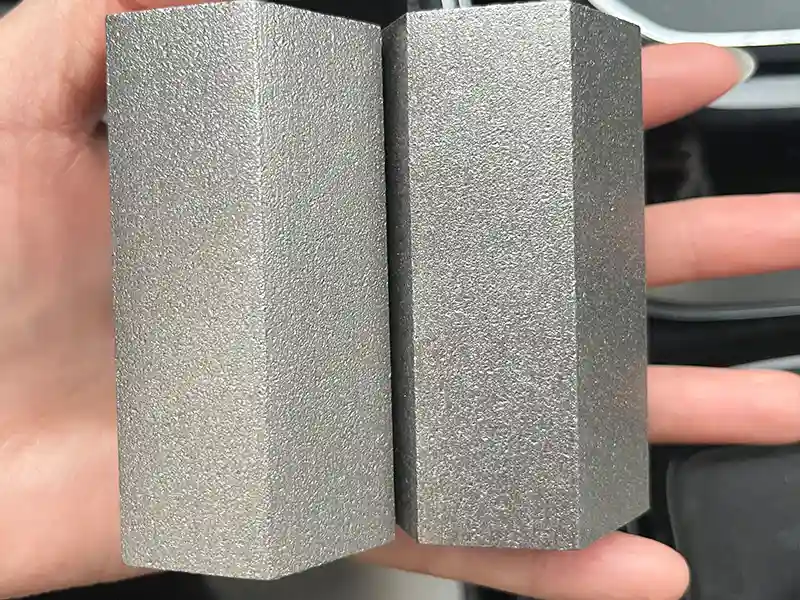

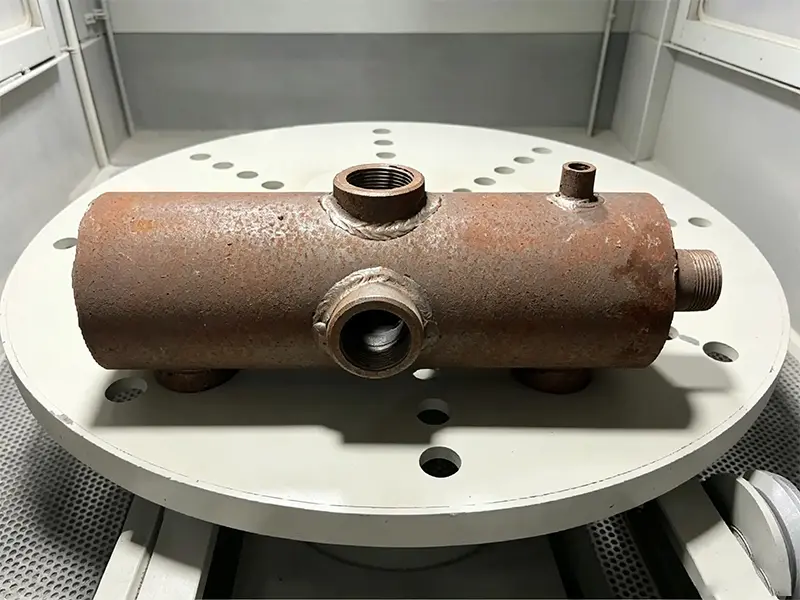

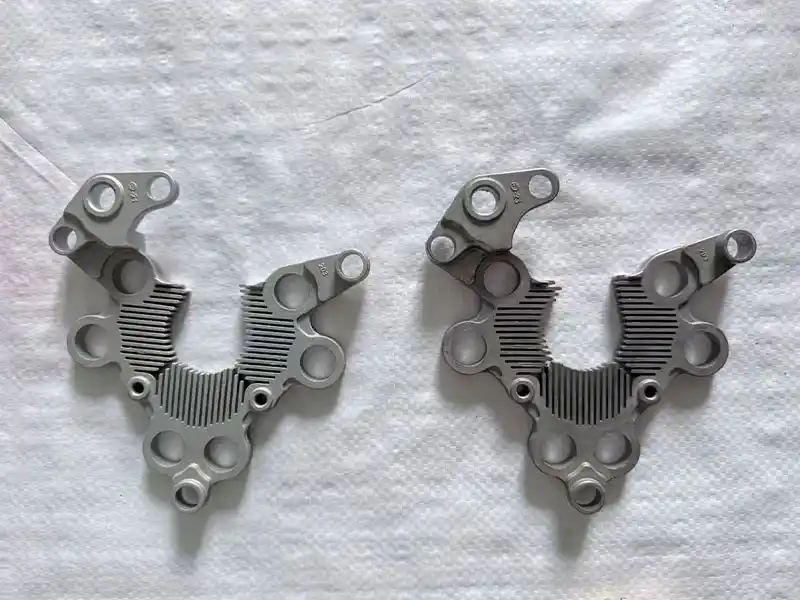

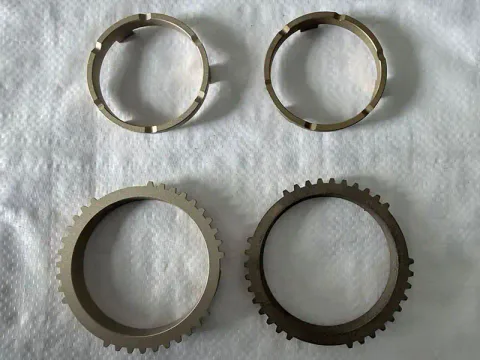

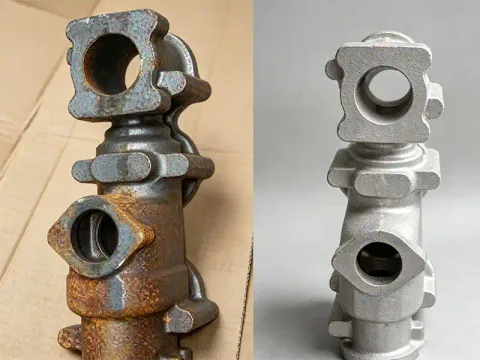

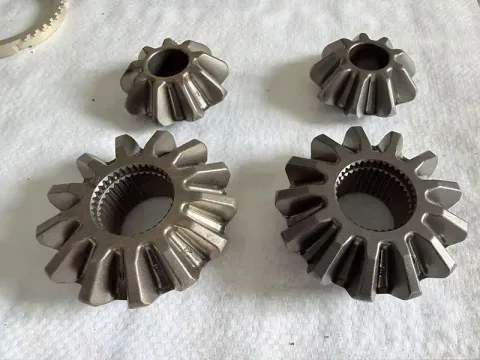

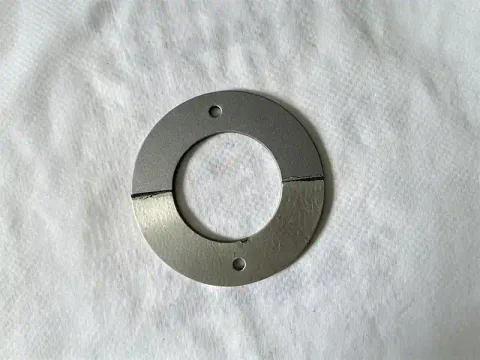

Working Video & Before/After Samples
View the working video of our suction manual sandblast cabinet. Watch real blasting operations for small metal parts, and discover reliable surface treatment performance of our enclosed siphon sandblaster.
Precise surface treatment for metal parts. Efficiently remove rust, scale, burrs and old coatings to improve paint adhesion.
Enclosed cabinet with dust collector. Recyclable abrasive media reduces running cost and maintains a safe working environment.
User-friendly manual suction sandblaster. Suitable for small batch processing with low compressed air demand.
Consumable Parts & Replacement Parts
All wear parts are manufactured to original factory specifications with stable stock supply. Fast global delivery to minimize your production downtime.
Consumable Parts
| Part Name | Description | Image |
|---|---|---|
| C Type Gun | High-pressure blast gun |
A durable, ergonomic blast gun with a comfortable grip.
|
| Nozzle | 35x20x8mm, long-lasting |
A small, cylindrical nozzle made of boron carbide.
|
| Rubber Glove | Durable gloves for operator use |
Thick rubber gloves attached to the cabinet.
|
| Hose | ID 13mm, OD 23mm |
A flexible, high-pressure air hose.
|
| Compressed Air Filter | Φ130x800mm |
A cylindrical air filter for clean air supply.
|
| Bag Filter | For dust collection |
A large bag filter attached to the cabinet.
|
| Glass Window | Inner 400x210mm |
A clear glass window for visibility during operation.
|
Why Choose Our Suction Blasting Cabinet
Many suppliers only sell standard sandblasting cabinets without understanding your real workshop troubles. At TS Blasting, we build machines around the daily challenges you meet during surface blasting production.
Send your workpieces to us, we provide free blasting test with before & after photos and videos before you place an order.
All wear parts are factory-original with stable inventory. Fast global delivery to minimize your production downtime.
Step-by-step installation and commissioning guidance via video call. Our engineer team supports lifelong troubleshooting.
One-year warranty for the main cabinet and core components. Consumable parts are excluded from warranty but offered at factory price.
Standard models shipped in 7–15 days; custom configurations delivered in 30–45 days. No outsourcing, no unexpected delays.
Chamber size, voltage, dust collector type, number of guns and accessories can all be tailored to your actual workshop needs.
FAQ
Get answers to common questions about suction blasting cabinets, abrasive selection, workpiece processing and machine customization from our technical team.
What blasting media can I use in this suction cabinet?
It supports mesh 36–220 light abrasives including glass beads, aluminum oxide, silicon carbide and plastic media, depending on your surface finish requirements.
What size air compressor do I need for this suction blasting cabinet?
For one standard Φ8mm nozzle, you need an air compressor with 0.8–1.2m³/min airflow at 6bar working pressure.
How long does the boron carbide nozzle last?
Under normal daily use, a boron carbide nozzle lasts 5–10 times longer than a standard tungsten steel nozzle, typically 300–600 working hours.
Can I add a rotary turntable to the standard suction cabinet later?
Yes. We provide optional turntable accessories that can be retrofitted to standard models for processing molds and bulky workpieces.
What is the lead time for a standard suction sandblasting cabinet?
Standard models are shipped within 7–15 days after deposit. Customized configurations take 30–45 days.
Do you provide overseas after-sales service?
Yes. We provide 1-year warranty for the main machine, lifelong spare parts supply and remote technical guidance via video call.
